5v---24v S130 Matched 65w+65w Dc 2 Low Mirror Elegant Ultra Power Supply Be Noise Widiarta Autry Rating: 3.8 out of 5
Low-cost price as well as totally free shipping. Allow's buy 5v---24v S130 Matched 65w+65w Dc 2 Low Mirror Elegant Ultra Power Supply Be Noise before costs rise.

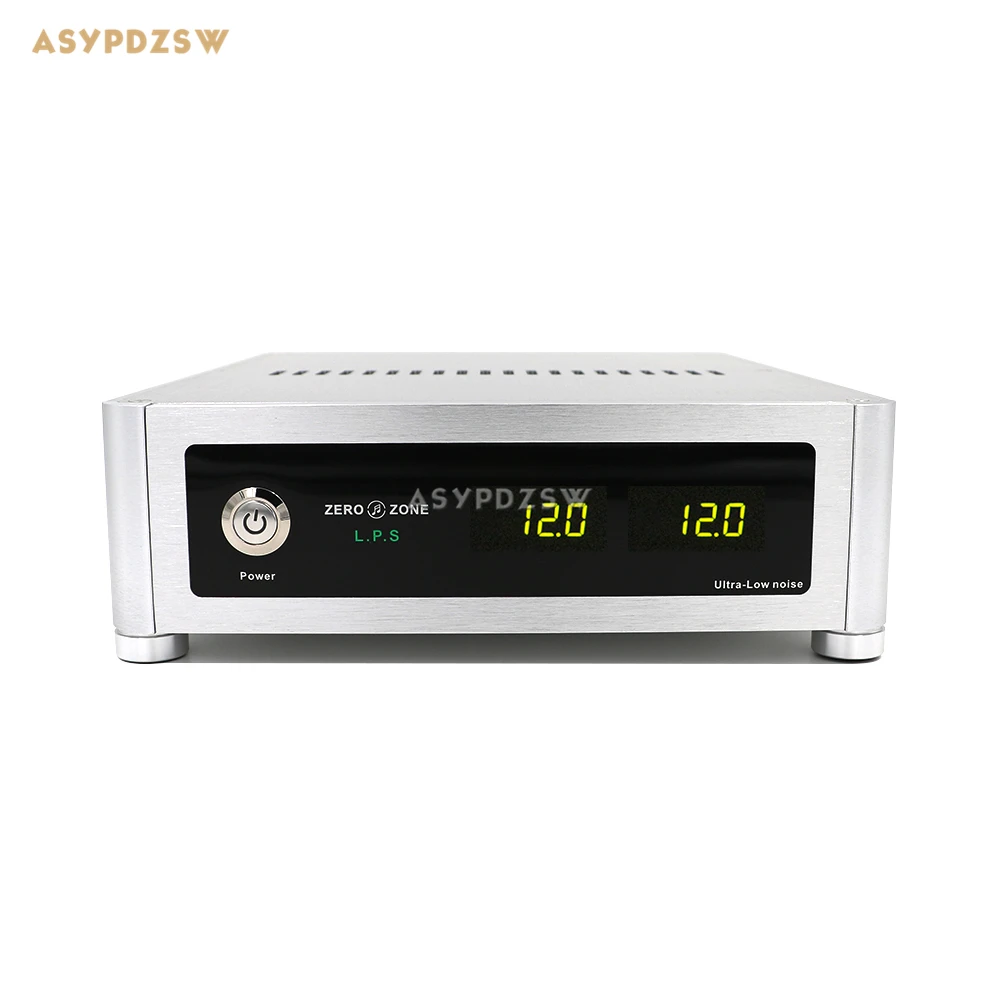

NEW MIRROR STYLE S130
Ultra Low Noise Linear Power supply
Summary:
Fillet mirror style, is attracting peoples favorite, There is no light in the case of, is hardly any display in front of you, But once you turn on the power, It will be displayed in front of you all, showing all HD Operating voltage. We are using the tail-end durable aviation 1.2M DC output cable at the High current work 2A--7A it can pass easily.
S130 is a high-performance DIY single-rail linear regulated power supply (PSU). low-noise, high-current, excellent line/load regulation, wide-bandwidth, and stability characteristics. S130 is ideal for DIY headphone amplifiers, preamplifiers, DAC, network media players, and other applications requiring a single-rail regulated PSU. The circuit uses all discrete components (no integrated circuits), and features high-current MOSFETs as the output "pass" devices. Main materials: Full Aluminum chassis. 2pcs 65VA All-copper R-core transformer. main caps is original Nichicon kg Series....Works voltage: AC 115V or AC 230V (for choose)Output voltage: (The following voltage can be selected) DC 5V /3.5A
DC 9V /3.3A
DC 12V /3A
DC 15V /2.5A
DC 18V /2.2A
DC 19V /2A
DC 24V /1.6AOutput voltage DC 5V --- 24V, You can select any combination of the two voltages as the two output (Please tell us about your choice).
(We can provide other output voltage custom-make)DC cable Polarity: Internal + / outside -Output DC cable plug type: Default 5.5*2.1mm (Can provide other type DC plug, Please tell us)Weight: About 4.5kgSize: 212mm * 62mm * 275mm (W * H * D)
Package include: S130 2 Way Linear PSU MachineX1 1.2M Output DC High current cable X2(Note: default is not include input AC cable)
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).5v---24v S130 Matched 65w+65w Dc 2 Low Mirror Elegant Ultra Power Supply Be Noise
