Wireless Mirror Van Rearview 7-inch Bus Luminous Car Refitting Kit Infrared Accessories Monitor Reversing Webb Orra Rating: 4.9 out of 5

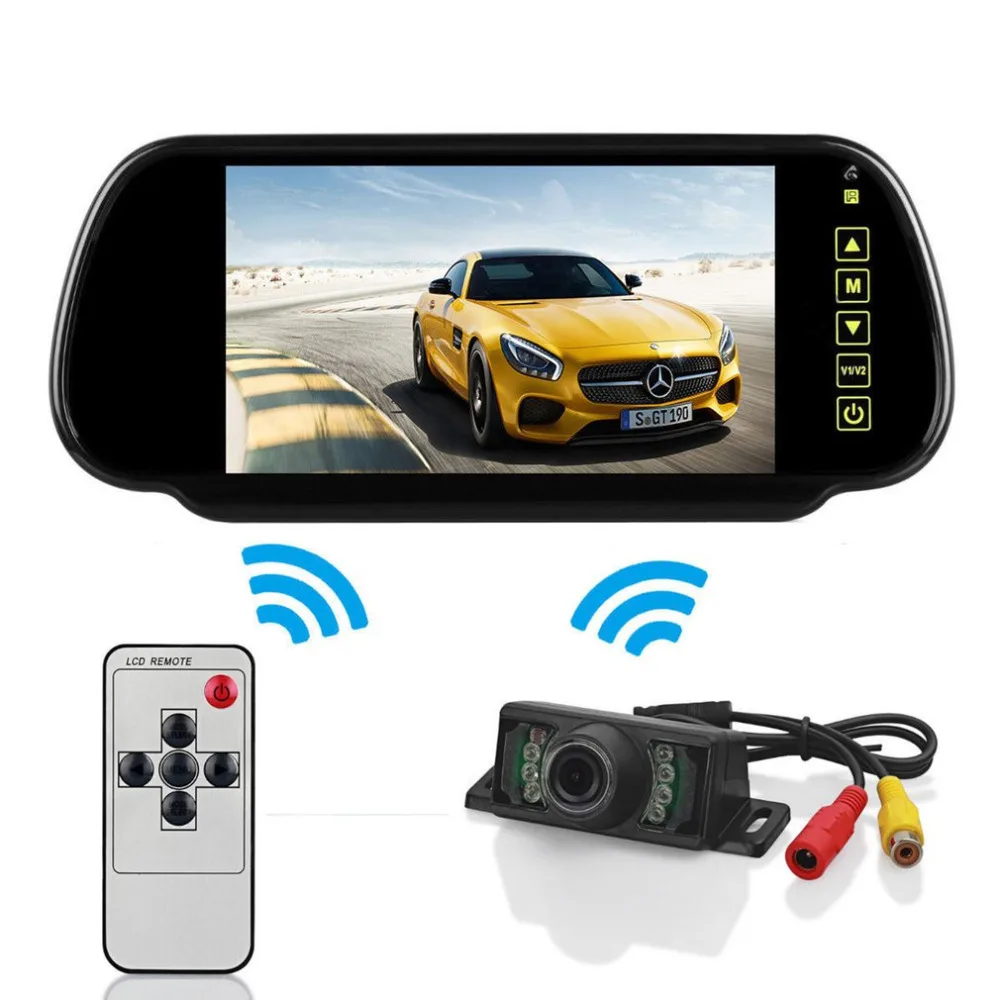

Wireless Rearview Kit 7-Inch LCD Mirror Monitor + Infrared Reversing Camera Car Refitting Accessories For Car Bus VanFeatures:
7-inch large TFT LCD screen, clear to see.
With a 8LED infrared night vision car rear view camera.
The rear view camera is IP67-68 waterproof.
Easy installation for DIY usage, convenient to operate.
2.4G wireless video transmission with high speed.
Real-time rear view while back up.Description:
Camera Parameters:
Waterproof: IP67-68
Night vision: support
CMD sensor: 2.8mm, High sensitivity
Viewing angle: 120 degrees
Sensor area: 5.96mm*4.267mm
TV system: PAL
Effective pixel: 622*586
TV line: 420 TV line
Electronic shutter: 1/50-1/100,00 sec
Scanning system: 2:1 interface
Video output: 1.0Vp-p,75Ohm
Auto white balance, Agc and BLC: support
S/N ratio: more than 48db
Low power consumption: No more than 300mA
Power supply: DC12V+/-10%
Storage temperature: -30℃~+60℃ (RH95% max)
Operating temperature: -20℃~+60℃ (RH95% max)
Monitor Parameters:
Screen: 7 inches LCD
Aspect Ratio: 16:9
Resolution: 480(W)*234(H)
Contrast ratio: 100:1
Model: PAL NTSC(auto switches)
2 way video input: V1V2
Blue screen when no signal input
No audio input or output
Operate mode: Touchscreen Remote control
Power supply: DC12V
Power consumption: 6W
Available for VCDDVDGPSCar reverse cam
Operating temperature: 0℃~40℃ (RH95% max)
Storage temperature: -20℃~+65℃ (RH95% max)Specifications:
Material: plastic + glass
Color: black
Item Size: 250*105*40mm
Package Size: 200*180*160mmPackage included:
1 x 7-inch LCD Monitor
1 x 120° Night Vision Cam
1 x Remote Control
1 x Video & Power Cable
1 x Power Cable
1 x Transmitter
1 x Receiver
1 x User manualNotes:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
