Sync Mirror Box Core F-150 Android Quad Etc Frame Navi 3 Gps Gibson Uut Rating: 4.0 out of 5
An excellent item or service is produced and offered of training course to give benefit and make you comfy when you use it. One of these items is truly extremely understanding of your demands for this special product.

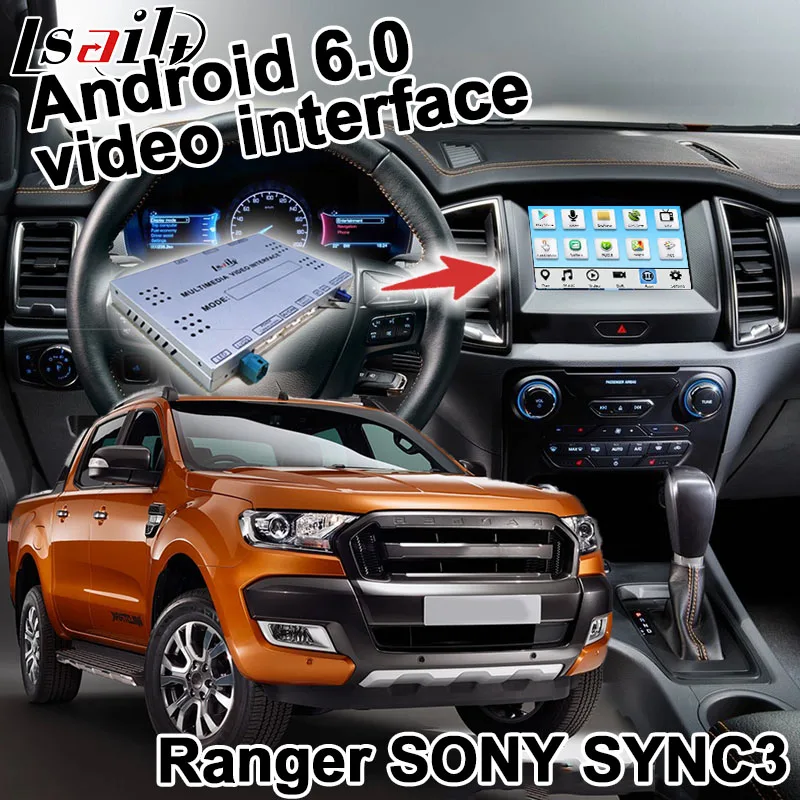

Android 6.0 System Navigation box Video Interface box For Ford Ranger Fiesta Focus Fusion F-150 etc with SONY SYNC 3 system
Optional with Touch screen, Wi-Fi, Bluetooth, Mirror Link, Cast screen, HD 1080P, Google MAP, Play Store, Voice control
Android’s features:
1. Android 6.0 system, 2+16GB storage Quad core 1.2GHz chip.
2. Compatible all Android apps include YouTube, Waze, Google map, Yandex navi Real-time & offline navigation etc, free download from Google Play store.
3. Operate whole system by Ford origin touch screen on central console.
4. Compatible to car origin rear view & front view, DVR, 360 panorama, TV box, TPMS optional.
5. ADAS lane monitoring is supported with DVR.
6. Connect via Wi-Fi Bluetooth USB.
7. Could be switch to origin system with just one click on dashboard or steering wheel.
8. Voice activate navigation, mirror link.
9. Simple plug & play installation.
10. Multi languages are supported, include English Pусский Français Español Português Arabic Persian Japanese Korean Hebrew etc
Professional festures & hardware
1. Multi screen interactive display is supported, LVDS out put.
2. Accessories like rear view, 360 bird eye camera box, DVD, DVB-T TV box, DVR, mirror link, video play via USB.
3. Support 2 HD RGB & LVDS video signal input.
4. 4K video play supprted.
5. Voice control navigation from both factory MIC or ours.
6. Display definition 480*800.
7. Touchscreen interface: Support 4-wire resistive & capacitive touch layer
8. Support MCU wireless system update
Installation advantages
1) No ndestructive installation design, which does not damage to the wires of original car; Special interface cable, plug-up installation without wire cut;
2) Choose installation functions freely (Bluetooth optional);
3) Technology is reliable, take the original agreement;
4) After the upgrade, it still retains all the functions of the original host, even if navigation goes wrong, does not affect the function of the use of the original car;
5) After-sales service is convenient, replace the adapter module directly, compare with special machine, its simple, less risk, safety and reliable
6) Choose beautiful interface by yourself;
7) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, its more convenient and flexible.
| Resolution | 800X480 |
| Display | LVDS Digital |
| SYSTEM: | Android OS 6.0.1 |
| RAM: | 2GB |
| ROM: | 16GB EMMC |
| CPU MODEL | T3 |
| WIFI: | Support |
| BT: | Support |
| MirrorLink: | From Android smartphone & iPhone |
| Microphone: | Include |
| TF Card : | For Map data |
| Navi Sound | Automatic mixing original car navigation audio with car speaker |
| Play Store: | Support |
| Youtube: | Support |
| MCU and APP Update: | System update via wifi to Internet |
| AV IN: | DTV and AV1 |
| Video OUT: | V and V1 |
| Camera: | Front/Left/Rear/Right (flexible guideline and radar ) |
| Cold start Time: | 40 seconds |
| Hot Start: | 6 seconds |
| Sleep: | Yes(Restart once after 5 times cycle sleep) |
| Sleep memory | Remember Last active APP |
| Switch Mode: | Use USB Android icon to automatically switch sound & image signal |
| Switch Mode1: | When play thel car radio or other image be shown, use the OK and SOUND and the steering wheel OK button, long press 3 seconds switch to Android, and short press to exit. |
| Switch Mode2: | Switch between 2 system by Android buttons on dail to select the Android automatically. |
| Use Operation: | By Origin car Touch |
| Steering Wheel: | Support sound track & volume adjustment |
| Forced Reset | PWR button(Long press 5 seconds) |
| Original Car Onstar in Android: | Automatically back to the original car, waiting for 10 seconds back to Android |
| Speed Control: | All cameras are effctive under 20 km/h |
| Installation Method | Plug and Play |
Quality warranty policy:
3 month free replacement and 1 year free maintenance.
Deliver 1 or 2 days after payment received.
Customer service will contact with you by whatsapp, email, skype to do all necessary works.
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Sync Mirror Box Core F-150 Android Quad Etc Frame Navi 3 Gps
