Wifi Core Youtube Ecosport Sync Mirror Waze Ford Gps Interface Android 3 Quad Beautiful Box Link Etc Citlali Blas Rating: 4.9 out of 5

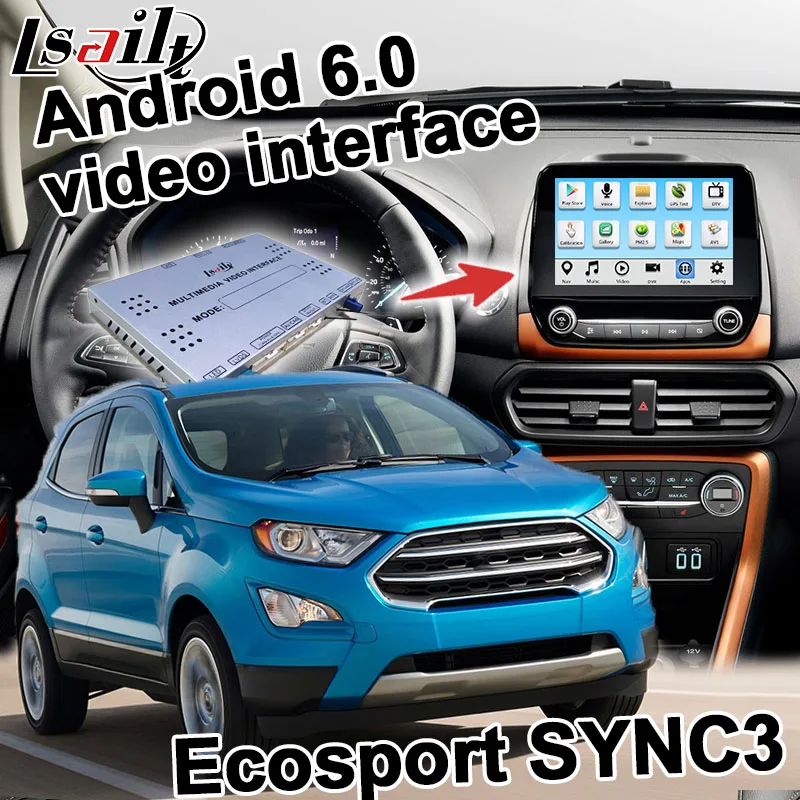

Android System GPS Navigation box Video Interface box For Ford Ecosport Explorer Ranger Fiesta Focus Fusion F-150 etc with SONY SYNC 3 system
Optional with Touch screen, Wi-Fi, Bluetooth, Mirror Link, Cast screen, HD 1080P, Google MAP, Play Store, Voice control
Android’s features:
1. Android 6.0 system, 2+16GB storage Quad core 1.2GHz chip.
2. Compatible all Android apps include YouTube, Waze, Google map, Yandex navi Real-time & offline navigation etc, free download from Google Play store.
3. Operate whole system by Ford origin touch screen on central console.
4. Compatible to car origin rear view & front view, DVR, 360 panorama, TV box, TPMS optional.
5. ADAS lane monitoring is supported with DVR.
6. Connect via Wi-Fi Bluetooth USB.
7. Could be switch to origin system with just one click on dashboard or steering wheel.
8. Voice activate navigation, mirror link.
9. Simple plug & play installation.
10. Multi languages are supported, include English Pусский Français Español Português Arabic Persian Japanese Korean Hebrew etc
Professional festures & hardware
1. Multi screen interactive display is supported, LVDS out put.
2. Accessories like rear view, 360 bird eye camera box, DVD, DVB-T TV box, DVR, mirror link, video play via USB.
3. Support 2 HD RGB & LVDS video signal input.
4. 4K video play supprted.
5. Voice control navigation from both factory MIC or ours.
6. Display definition 480*800.
7. Touchscreen interface: Support 4-wire resistive & capacitive touch layer
8. Support MCU wireless system update
Installation advantages
1) No ndestructive installation design, which does not damage to the wires of original car; Special interface cable, plug-up installation without wire cut;
2) Choose installation functions freely (Bluetooth optional);
3) Technology is reliable, take the original agreement;
4) After the upgrade, it still retains all the functions of the original host, even if navigation goes wrong, does not affect the function of the use of the original car;
5) After-sales service is convenient, replace the adapter module directly, compare with special machine, its simple, less risk, safety and reliable
6) Choose beautiful interface by yourself;
7) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, its more convenient and flexible.
Resolution | 800X480 |
Display | LVDS Digital |
SYSTEM: | Android OS 6.0.1 |
RAM: | 2GB |
ROM: | 16GB EMMC |
CPU MODEL | T3 |
WIFI: | Support |
BT: | Support |
MirrorLink: | From Android smartphone & iPhone |
Microphone: | Include |
TF Card : | For Map data |
Navi Sound | Automatic mixing original car navigation audio with car speaker |
Play Store: | Support |
Youtube: | Support |
MCU and APP Update: | System update via wifi to Internet |
AV IN: | DTV and AV1 |
Video OUT: | V and V1 |
Camera: | Front/Left/Rear/Right (flexible guideline and radar ) |
Cold start Time: | 40 seconds |
Hot Start: | 6 seconds |
Sleep: | Yes(Restart once after 5 times cycle sleep) |
Sleep memory | Remember Last active APP |
Switch Mode: | Use USB Android icon to automatically switch sound & image signal |
Switch Mode1: | When play thel car radio or other image be shown, use the OK and SOUND and the steering wheel OK button, long press 3 seconds switch to Android, and short press to exit. |
Switch Mode2: | Switch between 2 system by Android buttons on dail to select the Android automatically. |
Use Operation: | By Origin car Touch |
Steering Wheel: | Support sound track & volume adjustment |
Forced Reset | PWR button(Long press 5 seconds) |
Original Car Onstar in Android: | Automatically back to the original car, waiting for 10 seconds back to Android |
Speed Control: | All cameras are effctive under 20 km/h |
Installation Method | Plug and Play |
