4.3 Display Camera Monitor Led Rear Lcd Inch Car Offers Diykit View Home Assistance Mirror Elbert Kael Rating: 5 out of 5
Fantastic item can improve the quality of your life. Qualified to be purchased. Economical price as well as totally free delivery. Allow's purchase prior to rates increase.

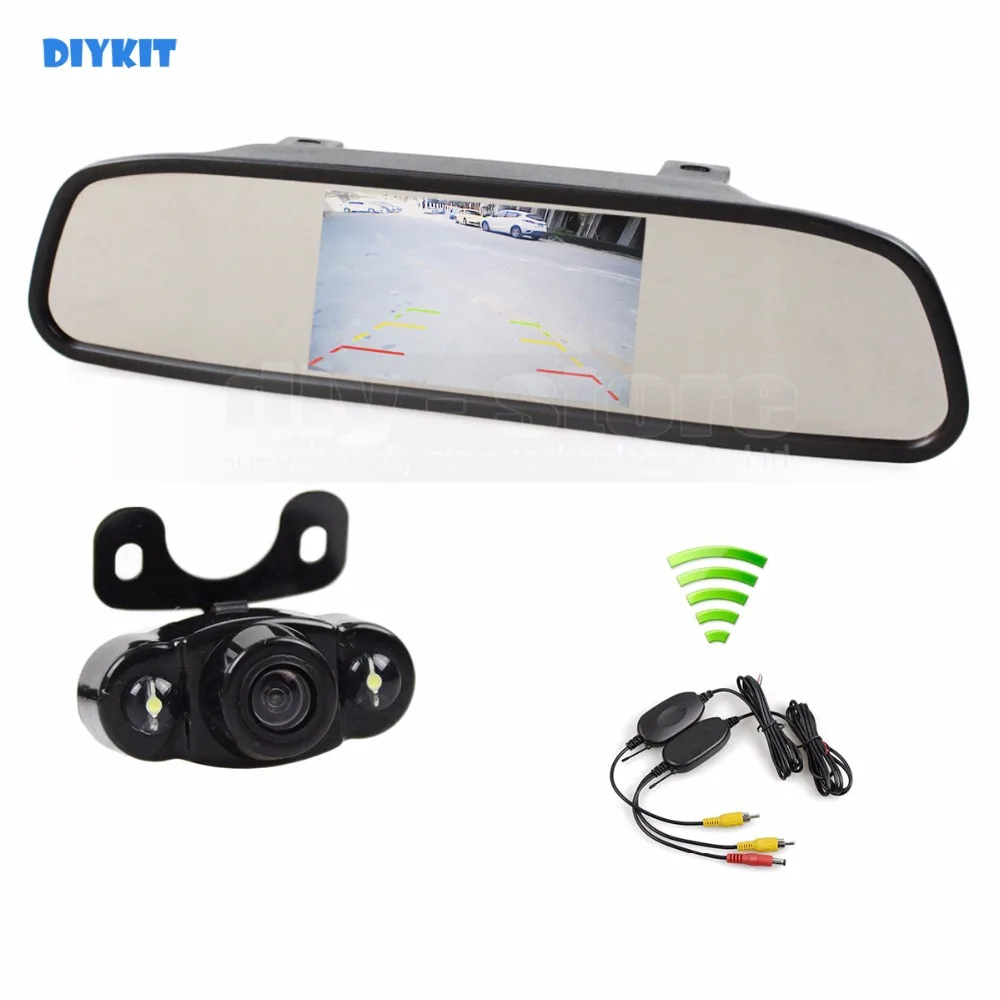

4.3 inch LCD Rear View Mirror Car Monitor Parking Assistance System
The best solution for your car reverse systemWaterproof Rear View camera with wide view angle2.4GHz Wrieless video transmissionHigh quality TFT LCD monitor
2 channel video inputs
Easy installation
It acts as a normal rear view mirror, and reflector will automatically appears when the monitor is turned off. So you can clip it over your original mirror, and it will show rearview image; while it is connected with rear view camera,the rear view image will appear on the screen automatically when reversing the car.
Monitor:
Two inputs are both video inputs, one for reversing camera, and the other for other video equipment inputs, such as DVD video input. The unit can only display one video input at a time and gives priority to video input 1. Generally, please connect video input 1 to the reversing camera, and input 2 to video equipment for entertainment.
- Since reversing camera is connected to your cars reversing light power cable, when you reverse the car, the reversing camera will be powered on. And monitor will display video input 1 whose signal comes from reversing camera.
- When car leave reserving mode, reversing camera is powered off. The monitor will switch to input 2 display.
Camera:
This Color CMOS Car Rear view Camera is a new and never used high quality IR Night color camera. With High-definition wide view angles and good waterproof functions, it’s perfectly to solve the issue of bad car rear view effect, help reduce incidents and accident.
- High-definition and 120 degree wide view angles
- With good waterproof function.
- Applicable to variety of Vehicles: car, truck, RV, mini-van etc
- Solve the issue of bad car rear view effect, can help reduce incidents and accident.
- Support LED Night color CMOS image
- With its elegant and contemporary design, this camera is very popular
- When the car back up, the Image will show Reverse leading line
- Made of high quality and durable material
- Its simple and modest design and small size wont draw any attention.
- We will send NTSC / PAL according to your country, if you have other requirements, please leave a message.
2.4G Wireless Transmission & Receriver
Convert any reversing camera with a standard RCA connector into a wireless camera with this universal transmitter and receiver kit.
Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end.
- Range of the transmission: 8m-12m
- The shorter the distance between camera and monitor, the better transmission signal
- The image can be seen clearly without any obstacles
Once your car is equipped with this compact and fashionable video reverse system, the world around your car will not trouble you anymore! Its 2 video inputs also enables you to enjoy video from DVD or other devices.
Specifications:
Monitor :
- Screen size: 4.3 inches
- Display mode: 4 : 3
- System: PAL / NTSC (Auto)
- Definition: 480(H) x 240(V)
- Nominal voltage: 12V 10%
- Power consumption: 3W
- Way of control: on the back button
- Vedio input: Two way video input
- Operation temperature: -20°c-60°c
- Storage temperature: -40°c-60°c
- Brightness: 250cd/m⊃2;
- Contrast: 300:1
Camera:
- Camera image type: High performance color CMOS
- Horizontal resolution: 420TV Lines
- Usable illumination: 0.05Lux
- Free viewing angle: 120º
- Waterproof: IP67
- Shockproof: 10G
- Video output: 1.0Vp-p75
- Power supply: DC 12V
- Video system: NTSC / PAL
Packing list:
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).4.3 Display Camera Monitor Led Rear Lcd Inch Car Offers Diykit View Home Assistance Mirror
