Car 7 Mirror Diykit Video Inch Vision Build-in Monitor Super Hd Lcd Display Parking Jimena Zeta Rating: 5 out of 5

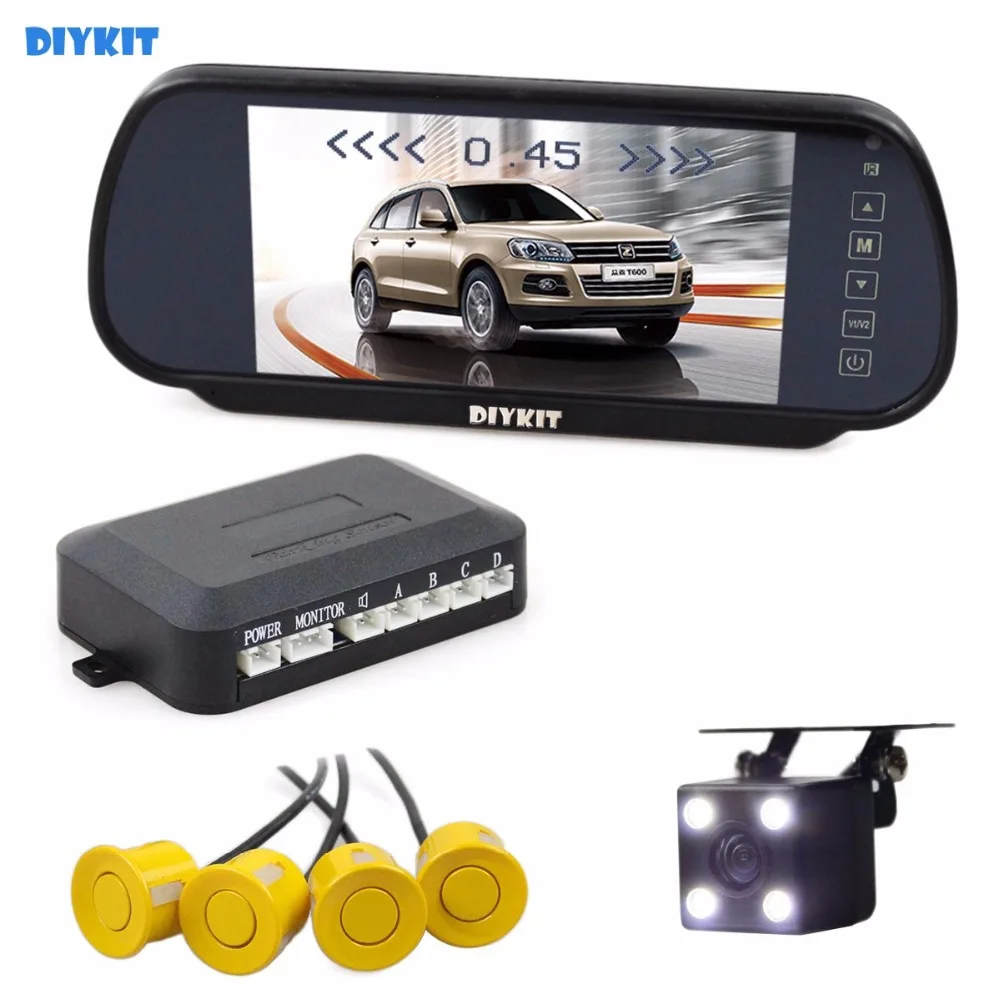

Latest & Popular 7" LCD Display Mirror Car Monitor
Night Vision Rear View Camera
4 Parking Sensor
7 inch TFT LCD Rear View Mirror Car Monitor
It acts as a normal rear view mirror, and reflector will automatically appears when the monitor is turned off. So you can clip it over your original mirror, and it will show rearview image; while it is connected with rear view camera,the rear view image will appear on the screen automatically when reversing the car.
- Since reversing camera is connected to your cars reversing light power cable, when you reverse the car, the reversing camera will be powered on. And monitor will display video input 1 whose signal comes from reversing camera.
- When car leave reserving mode, reversing camera is powered off. The monitor will switch to input 2 display.
Camera:
This Color Car Rear view Camera is a new and never used high quality LED Night color camera. With High-definition wide view angles and good waterproof functions, its perfectly to solve the issue of bad car rear view effect, help reduce incidents and accident.
- High-definition and 120 degree wide view angles, with good waterproof function.
- Applicable to variety of Vehicles: car, truck, RV, mini-van etc
- With its elegant and contemporary design, this camera is very popular
- When the car back up, the Image will show Reverse leading line
- Made of high quality and durable material
- We will send NTSC / PAL according to your country, if you have other requirements, please leave a message.
Reversing Video Parking Sensors 4 Sensor Kit
Four detectors(color selectable)Five different frequencies of alarm sound according to distanceWith this Parking Sensor system installed, drivers can lower the risk of accident. This affordable parking sensor enhances the process of parallel and backup parking designed for your concerns about safety and for vehicles that have poor rear visibility. The system will work automatically to detect the obstacles at the rear of your car at any time. All parts are designed with professional grade quality.
The alarm sound would become more rapid when the distance gets shorter and shorter, alarm mode and danger mode.
How does it work?The system is automatically activated when you engage reverse gear. Small sensors are recessed to the rear of the vehicle, they send and receive ultrasonic radio waves, which bounce off obstacles and alert you to their presence. The internal buzzer that gradually increases in frequency as you approach the object.
How to install?
- There is "UP" on the detector, please keep the arrow upwards when install it;
- It will be the best to install detectors of a height about 50-60cm from the ground;
- Connect red and black cable seperately to the positive/ negtive pole of the reversing lamp.
Full range of selectable color:
Please leave us a message what color number you want.
NOTE: please leave us a message what color number you want.
Specifications:
Monitor :
- Screen size: 7 inch
- Display mode: 16 : 9
- System: PAL / NTSC (Auto)
- Definition: 800(H) x 480(V)
- Nominal voltage: 12V 10%
- Power consumption: 3W
- Way of control: Monitor button / Remote control
- Vedio input: Two way video input
- Operation temperature: -20ºc-60ºc
- Storage temperature: -40ºc-60ºc
- Brightness: 250cd/m2;
- Contrast: 300:1
Camera:
- Camera image type: High performance color image
- Horizontal resolution: 420TV Lines
- Usable illumination: 0.05Lux
- Free viewing angle: 120º
- Waterproof: IP67
- Shockproof: 10G
- Video output: 1.0Vp-p75
- Power supply: DC 12V
- Video system: NTSC/PAL
- Voltage: DC 9V-DC 15V
- Rated voltage: DC 12V
- Power cost: Max 1.5W
- Respond distance: 0.4m-2.0m
- Alarm distance: 0m-2.0m
- Sensor diameter: 22mm
- Install mode: drill
- Sensor angle: X, Y, 60c
- Work temperature: -30ºc-80ºc
- Alarm volume: 65dB
Packing list:
