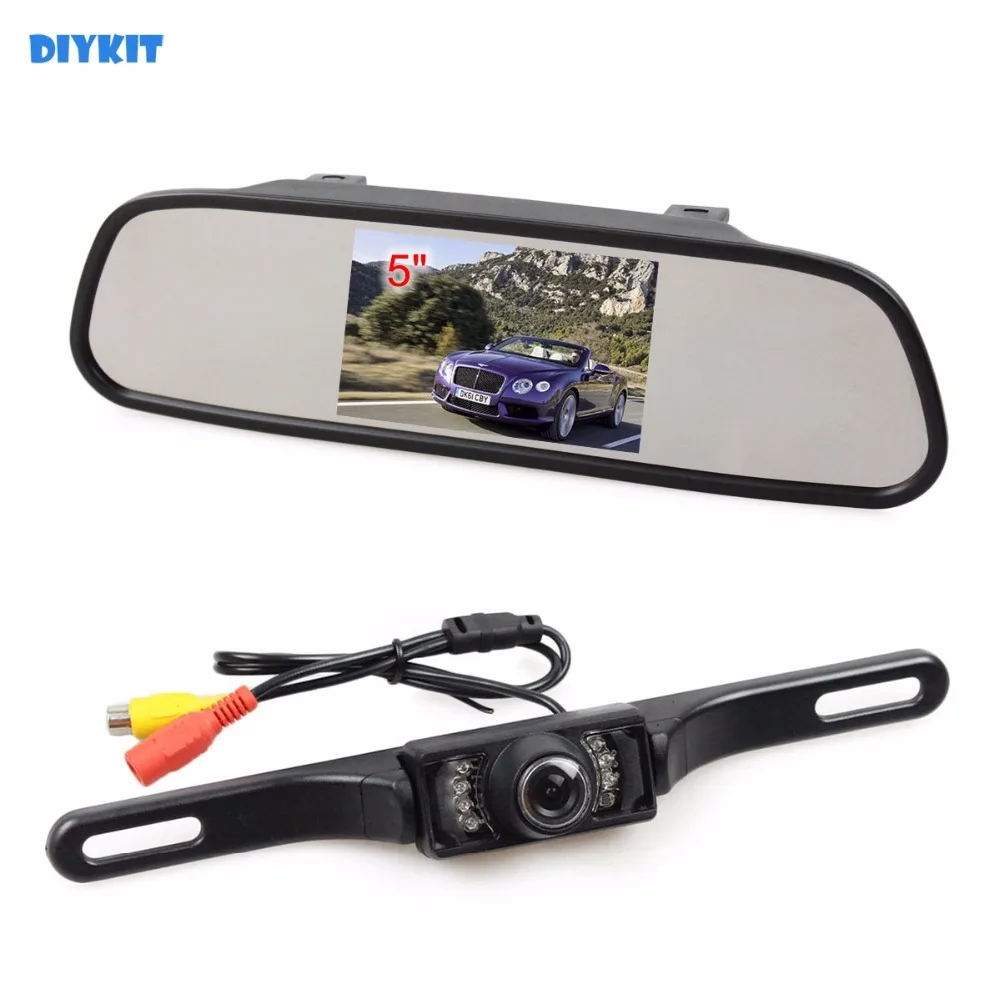

5" TFT Car LCD Rear View Rearview Mirror Monitor with Night Vision Rear View Camera
Waterproof IR camera with wide view angle
6m length video cable, Plug and Play
5" High quality ultra-thin monitor
2 channel video inputs
Easy installation
5" HD Mirror Monitor 2ch Video Input Car Monitor
Its time to upgrade your car reversing now.The new out of the car rear view mirror with 5 inch HD display, can show more clear and more real images.
This mirror monitor with two video inputs, one for reversing camera, and the other for other video equipment inputs, such as DVD video input. The unit can only display one video input at a time and gives priority to video input 1. Generally, please connect video input 1 to the reversing camera, and input 2 to video equipment for entertainment.
- Since reversing camera is connected to your cars reversing light power cable, when you reverse the car, the reversing camera will be powered on. And monitor will display video input 1 whose signal comes from reversing camera.
- When car leave reserving mode, reversing camera is powered off. The monitor will switch to input 2 display.
Camera:
This Color CMOS Car Rear view Camera is a new and never used high quality IR Night color camera. With High-definition wide view angles and good waterproof functions, its perfectly to solve the issue of bad car rear view effect, help reduce incidents and accident.
- High-definition and 120 degree wide view angles
- With good waterproof function.
- Applicable to variety of Vehicles: car, truck, RV, mini-van etc
- Solve the issue of bad car rear view effect, can help reduce incidents and accident
- With its elegant and contemporary design, this camera is very popular
- When the car back up, the Image will show Reverse leading line
- Made of high quality and durable material
- Its simple and modest design and small size wont draw any attention.
- We will send NTSC / PAL according to your country, if you have other requirements, please leave a message.
With this item, you can park your car easily, speedily and safely.It will be a lot safer for beginners or even professional drivers.As you never know when an accident will occur.You can only prepare for the worse.
Connection Diagram:
Specifications:
| Screen | Size | 5 inch |
| System | PAL/NTSC(Auto) | |
| Definition | 480(H) x 240(V) | |
| Nominal voltage | 12V | |
| Power consumption | 6W MAX | |
| Way of control | On the back button | |
| Channel of vedio input | 2 channel | |
| Brightness | 250cd/m⊃2; | |
| Contrast | 300:1 | |
| Camera | Sensor | 1/4 CMOS |
| Lens | 2.8mm | |
| Signal system | PAL/NTSC | |
| Horizontal resolution | 420 TV Lines | |
| Pixel | PAL:500(H)x582(V)NTSC:510(H)x492(V) | |
| Frequency | PAL:50Hz NTSC:60Hz | |
| S/N Ratio | 48db(AGC OFF) | |
| Minimum illumination | 0.8LUX/F1.2 | |
| White balance | Auto | |
| Gain control(AGC) | Auto | |
| Power supply | DC12V | |
| Weatherproof Grade | IP67 |
Packing list:
