MCU smart controledCharge (selective up to 1000mA)5V USB output( power bank) Short-circuited protection / Reverse protection Over Chg protection / Over heating protection Time limitation(NiMH) / Defective cell protection Input: DC 5V / 2A(min.) Charge output: Li-Ion 4.2V500mA/1000mA *2Li-Ion 4.35V500mA/1000mA *2LiFePO4 3.6V500mA/1000mA *2Ni-MH/Cd 1.48V500mA/1000mA * 2 USB output : 5V 1000mA (only with Li-Ion 3.7/3.8V battery inserted) For battery sizes: diameter 8mm-26mm; height 34mm-71mmNiMH/Cd AAA/Microro, AA/Mignon, C/ Bady, Sub- C, ALi-Ion 26650, 22650, 18650,18490, 18500,17500, 17355, 16340(RCR123), 14500, 10440About Order: This order is V20i charger + USB cable + manual (not including battery)

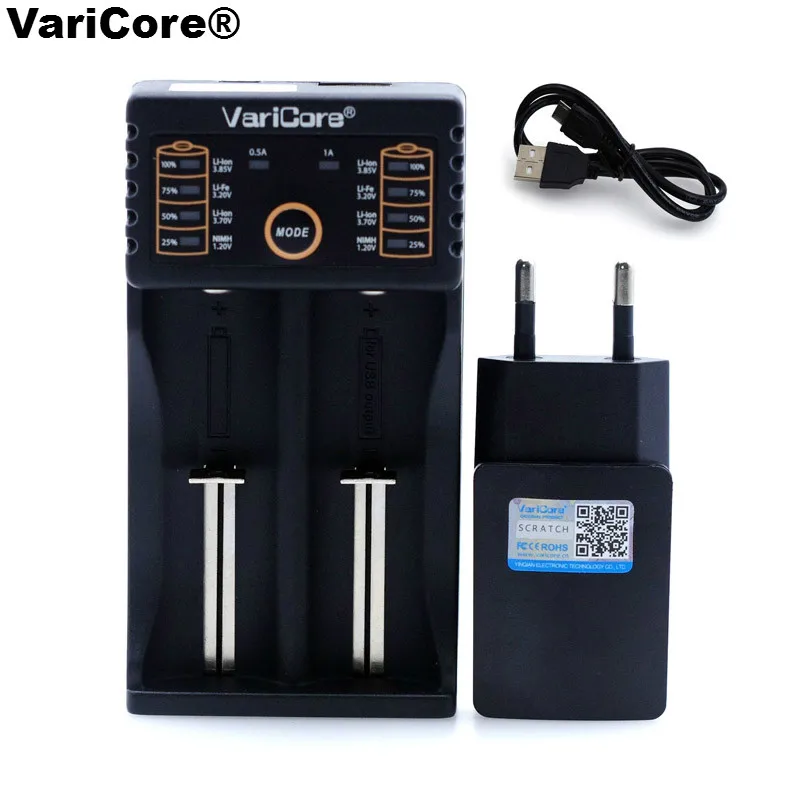

This charger is designed for portable, flexible and multi types of battery. It can detect the battery type and charge the battery automatically under your selected charging current. Built-in LED indicators to display the charging status and 5V/100mAh USB output function
Note:
This charge is only for charging cylindrical li-ion (3.7V, 3.8V), Ni-MH/Ni-Cd, LiFePO4(Li-ion) batteries.
Please read this instruction before use; Pay attention to the recommended charging current, never select improper charging current
When charge with 5V USB AC adapter, 2A-current AC adapter is recommended
The charger ma get hot during working a long time, handle with care!
Please cut off the electricity and remove the battery from the charger when charging complete.
Indoor condition only!!
The displaying data of the charger is only for reference; please refer to professional test instruments if you need accurate data
2. Feature and Specification:
Micro USB DC 5V input, two independent slots and charging channels with built-in micro-computer management system to ensure the high efficiency
Two charging current options (0.5A/1.0A)
Four LED indicators shows the charging status (25%, 50%, 75%, 100%) and also shows the battery type when insert into battery (1.2V Ni-MH , 3.2V Li-Fe, 3.7V Li-ion, 3.85V li-ion)
Identify Li-ion and Ni-MH automatically; But, you need to adjust the charge mode for LiFePO4 and 3.85V li-ion battery
It can active 0V rechargeable battery but the charger don’t charge 1.65V ~ 1.85V battery types.
Buit with Over-charging protection, over-discharging protection and polar reverse protection. Also, it can identify broken battery.
Charing mode: instant current and voltage.
DC input charging: working power source at 5V-2A (Micro plug)
Standard automatical 5V/1000mAh USB output port
3. Select Button, LED and function.
MODE Button:
Press the button to select the battery type when insert into a battery. It begin to charge the battery after fixing the battery type (please noted that it identify Li-ion and Ni-MH automatically, don’t need to select manually)
Press the button and hold it for 2 seconds whenever after connection to power, it can switch the charging current between 0.5A and 1.0A;
LED Indicator
Connect the charger to power, all LED indicators will be on, when no battery insert after 5 seconds, LED indicators will be off except the 0.5A current indictor
When battery is inserted into the charger, 4 LED indictors will be on and 3.7V LED indictors flicker, then, please click the MODE button to fix the correct battery type. It will begin to charge the battery 5 seconds later, and the LED indictors will show the charging status.
Press the MODE button to show the battery type( 5 seconds ) during charging and return to show the charging status
It can shows the battery’s remaining power when put battery into the charger ( no connection with charging power)
USB output indictor: When USB output is detected, the battery volume indictors will be on for 10 seconds and then off, click the button to show the battery’s volume rate.
4. Specification:
Input: Micro USB DC 5V/2A
Output: 1.4V , 4.2V±0.05V , 3.65±0.05V , 4.35±0.05V
Output current: 500/1000mAh
Constant voltage charging, cutoff current: < 100mAh
Standby current:<15mAh
5. USB Output Function
USB output no-load voltage: 4.90V-5.30V
Output current: 1000mAh (1A)
No-Load current: < 1mAh
The output voltage is 4.75V-5.25V when current is 1000mAh
Output protection voltage: 3.0±0.1V
6. Compatibility
Li-ion/IMR: 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
NiMH/Cd AAA/Microro, AA/Mignon, C/ Bady, Sub- C, A
7. Size
112mm× 60mm×30mm/ 86grams + 15gram USB cable
